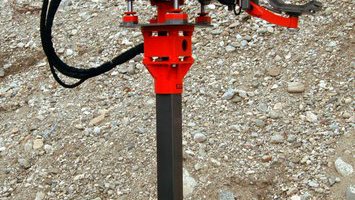

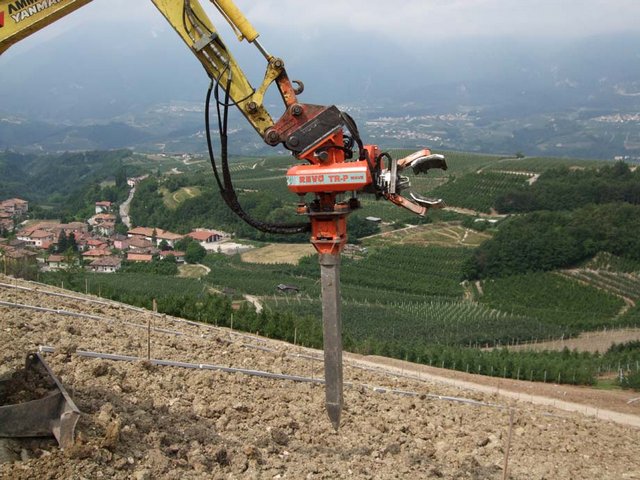

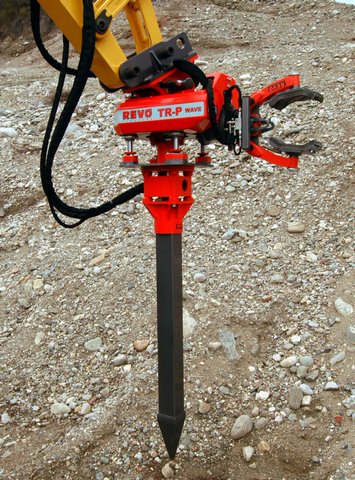

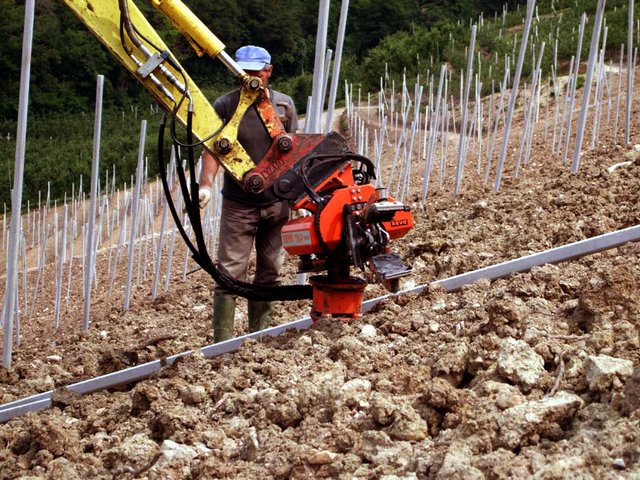

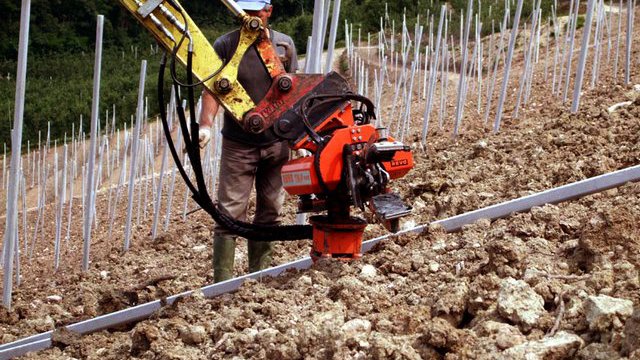

The innovative patented system allows you to make holes in soft, compact and gravely soil with extreme ease. A compact and strong centre produces micro vibrations, which relay in the surrounding terrain, enabling the material to be moved and compacted, creating a square, clean hole, with strong sides.

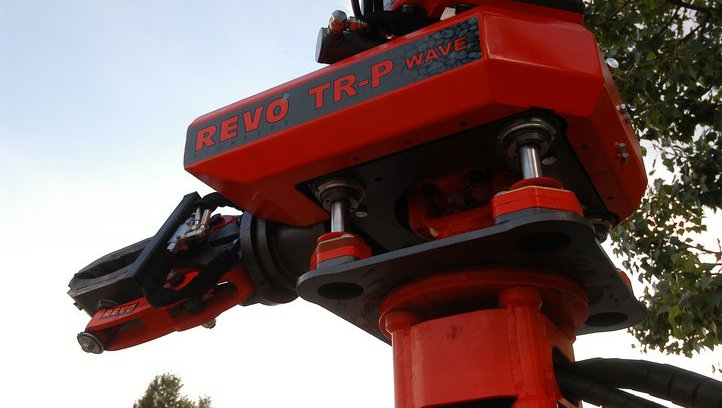

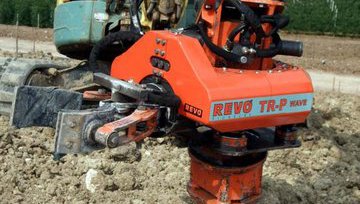

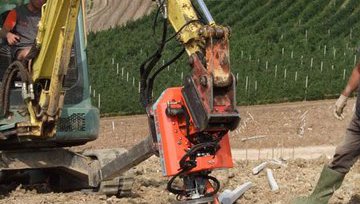

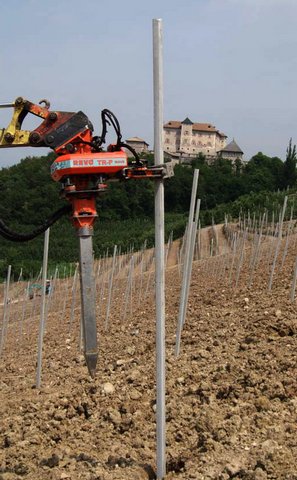

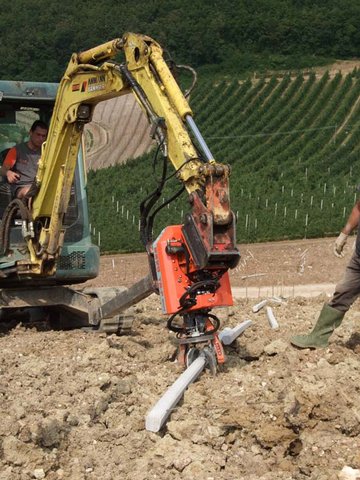

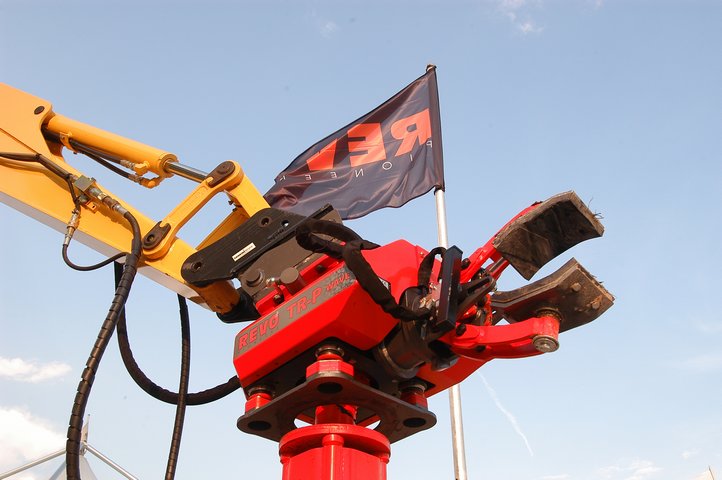

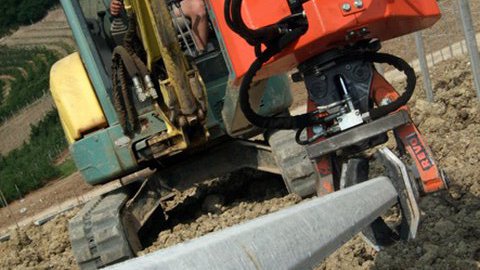

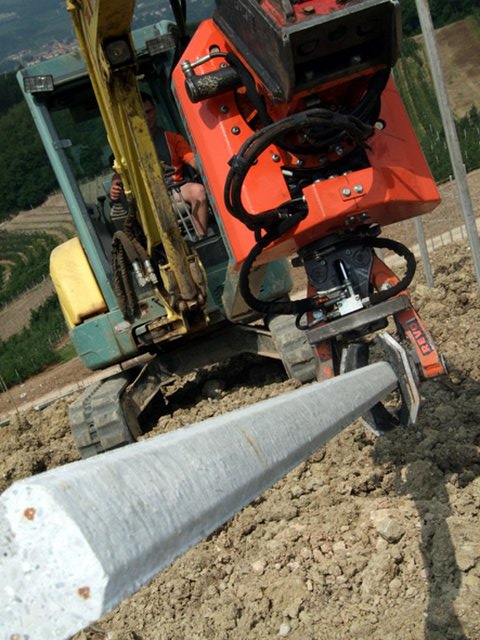

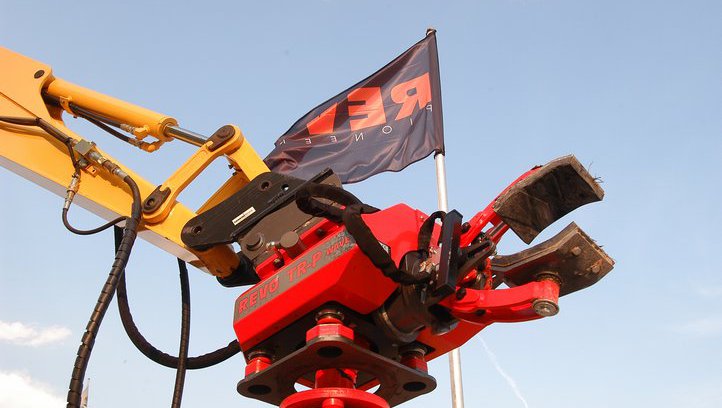

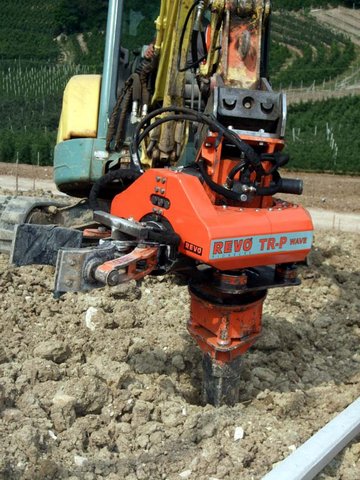

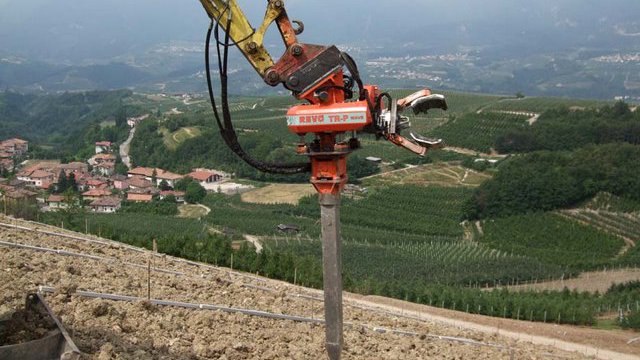

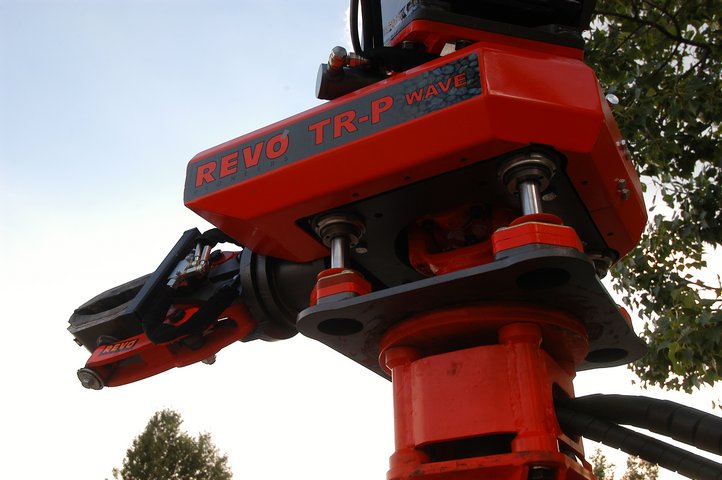

TR-P Wave, ideal for excavators from 3 to 8 ton, is the top of the range for its exceptional productivity. With one single piece of machinery, it is possible to perforate holes and insert concrete posts with the use of the hydraulic clamp. The TR-P’s 3 movements (horizontal, vertical and diagonal) render this unit flexible in any situation.
Technical Specifications
Side rotation ralla |
180° |
Rotation stings |
180° |
Maximum opening stings |
220 mm |
I load Max. to the pliers |
250 kg |
Length aims |
1200 mm |
Section aims square |
100x100 mm |
Vibrating power |
t 5.8 |
Devoted for excavators from |
from 3 ton to 8 ton |
Quantity I oil l/min. |
L 50-210 bar |
Total weight |
380 kg |
* Specifications and design subject to change without notice. |
- |
