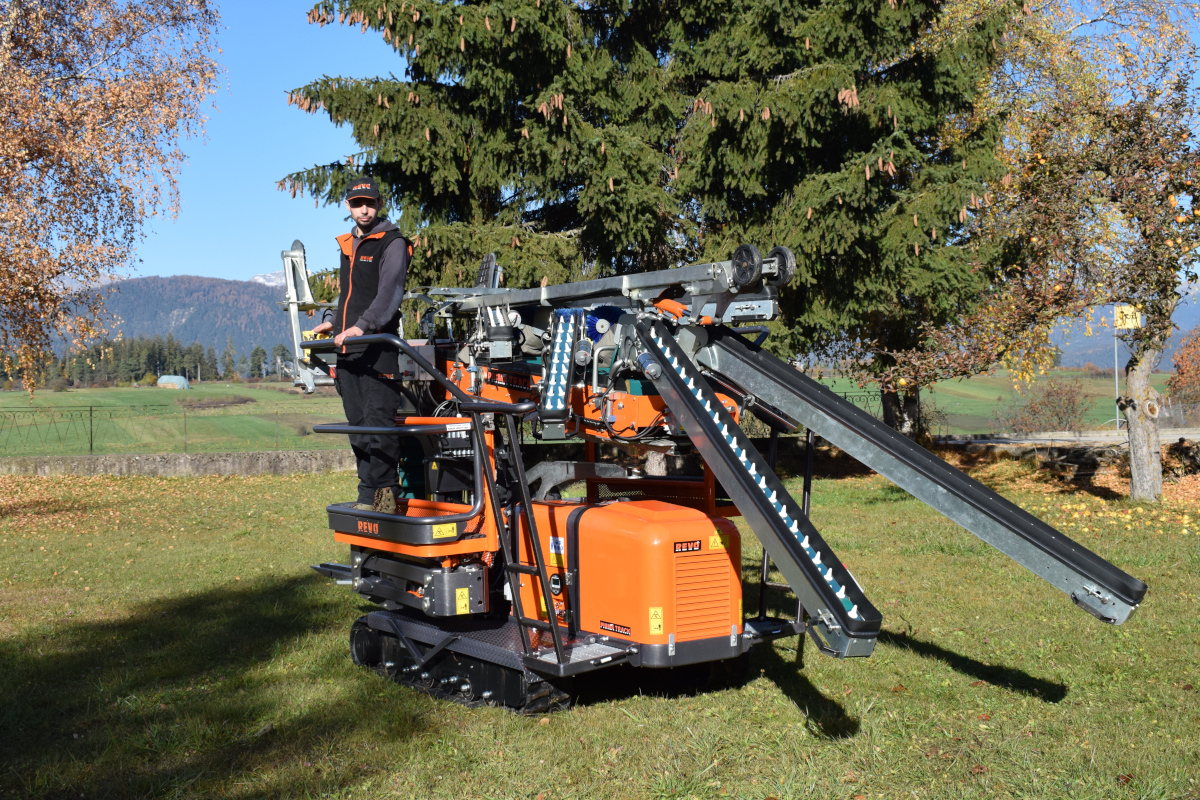

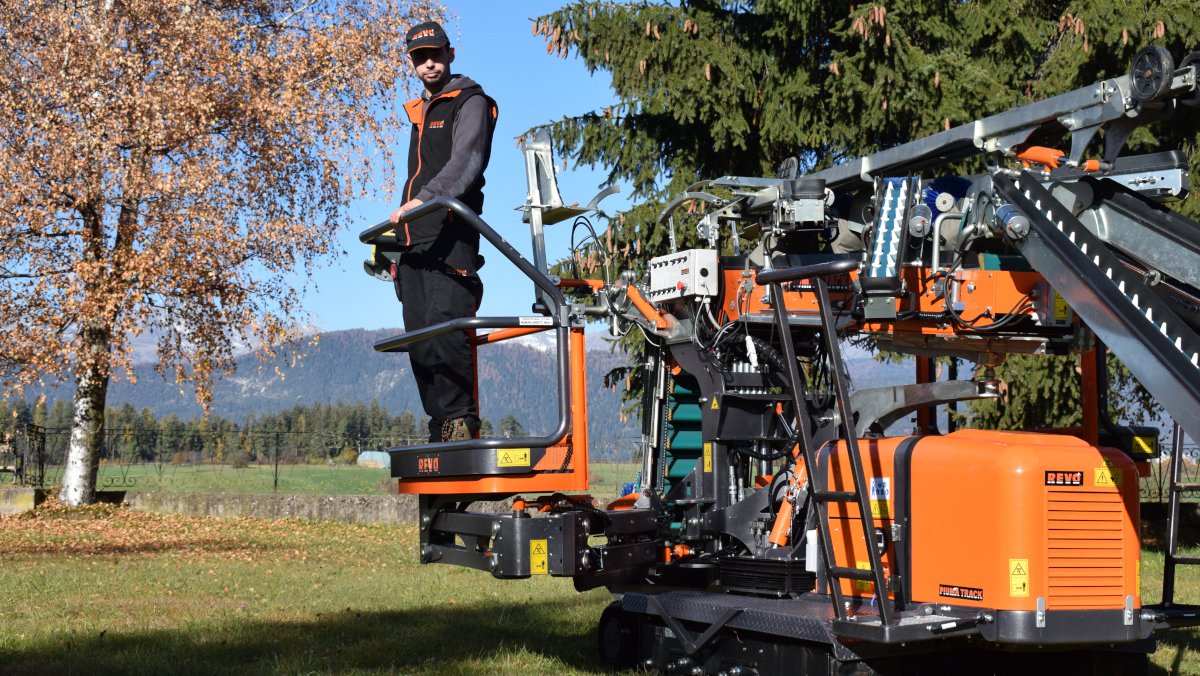

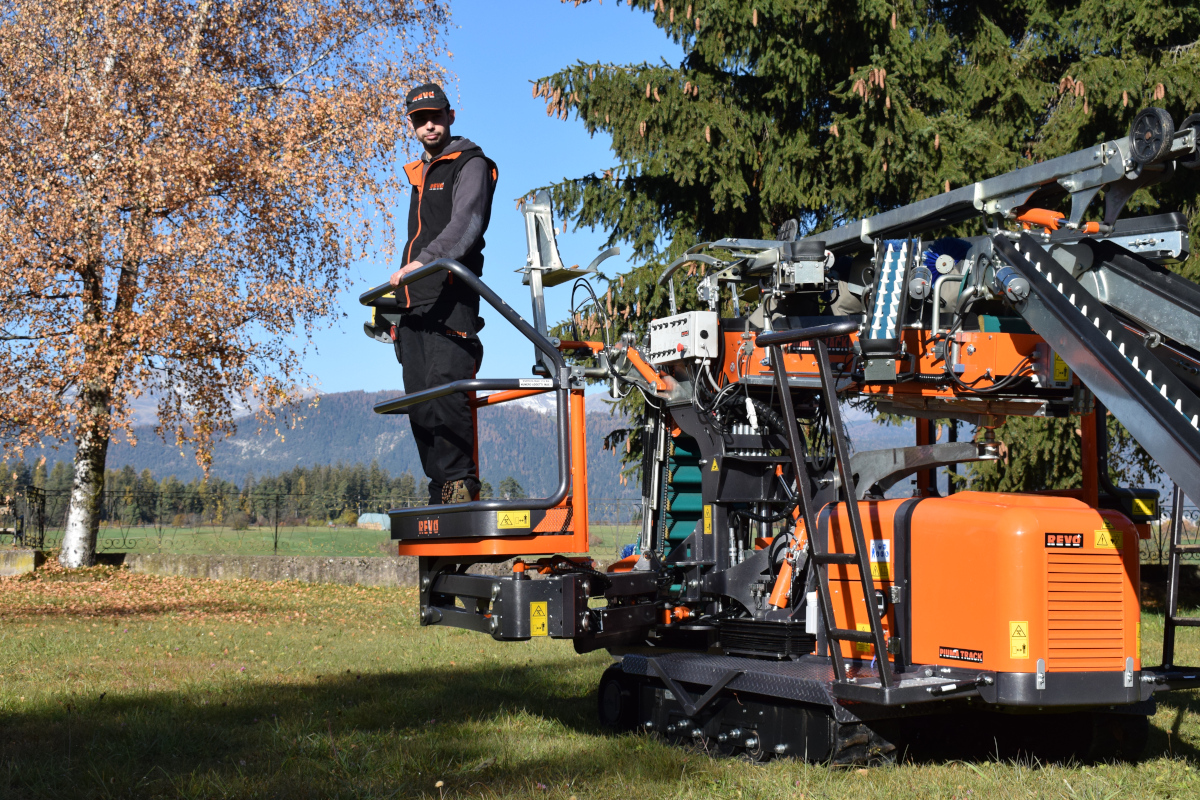

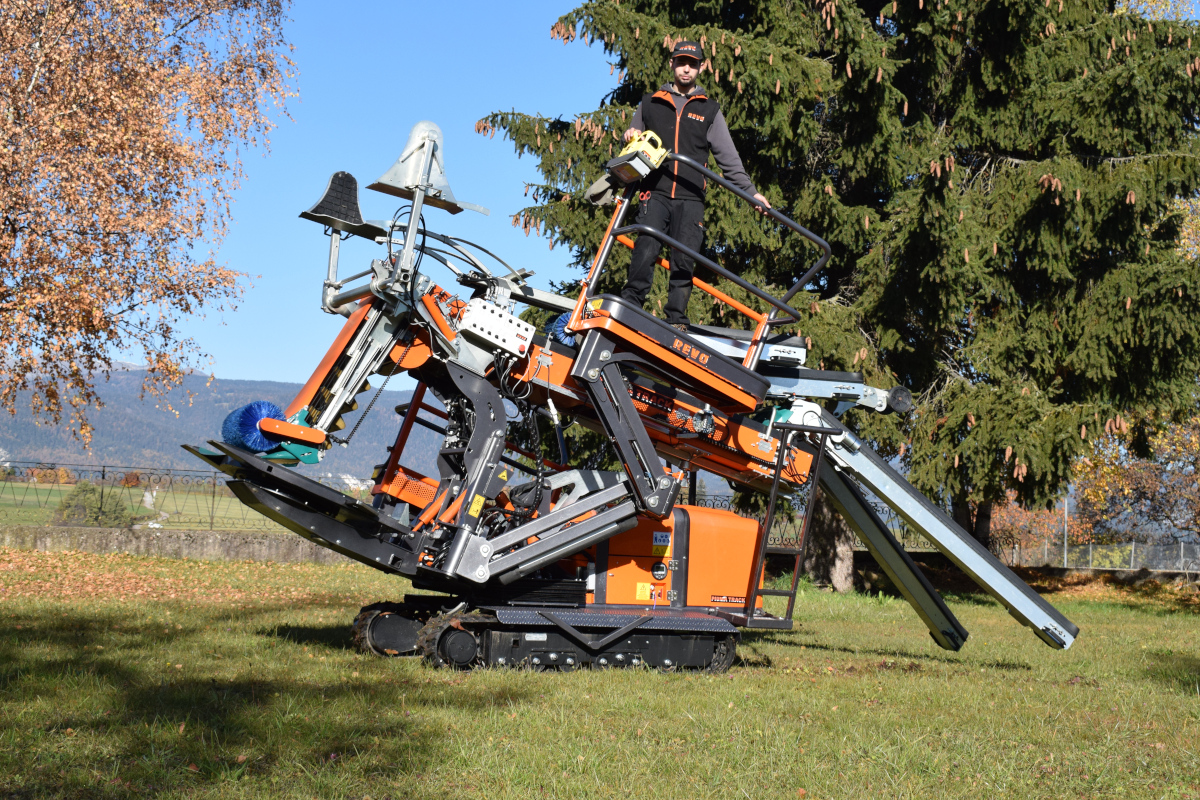

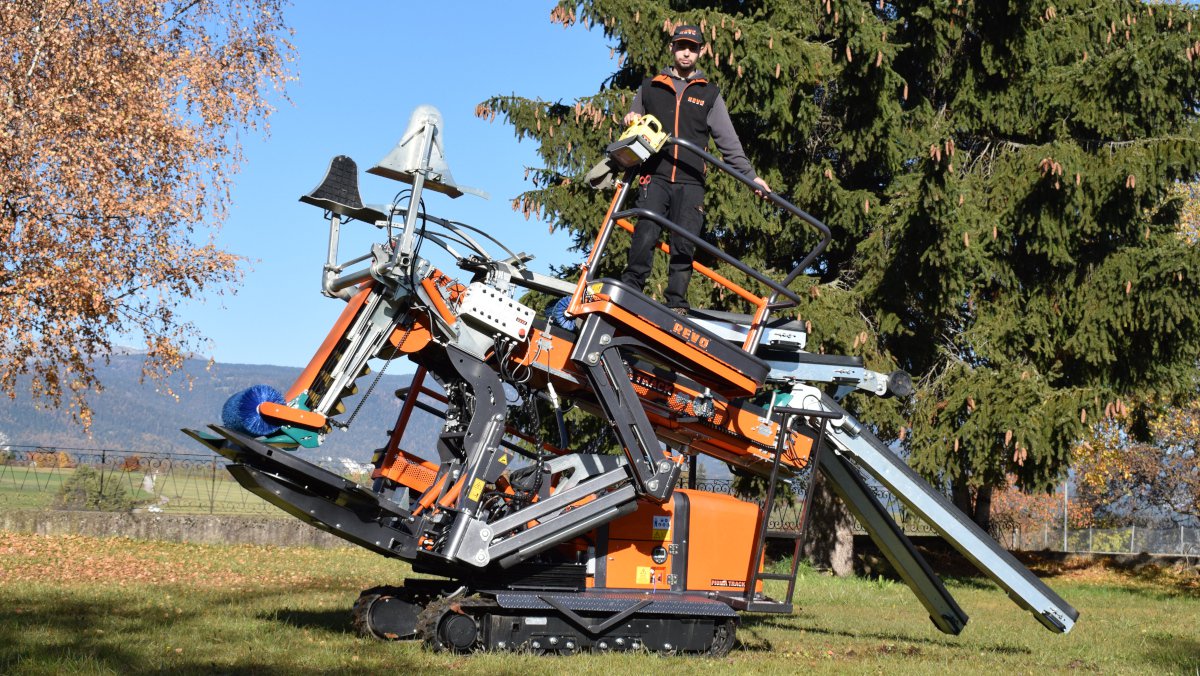

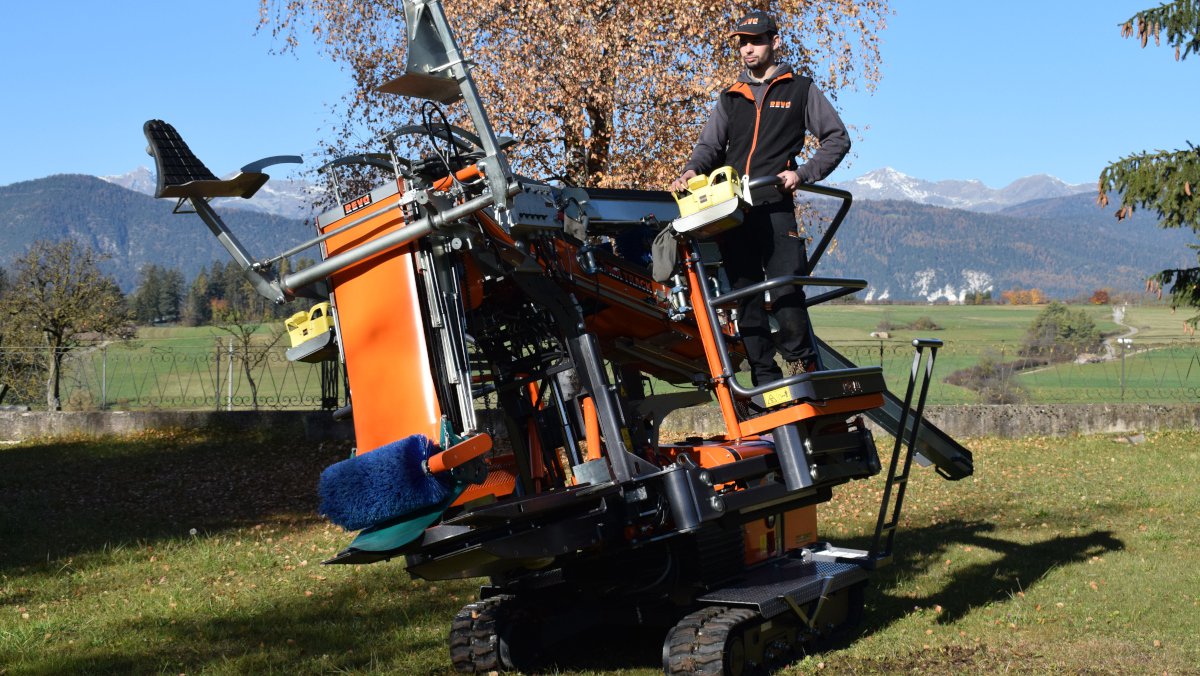

Fitted with tracks, this unit is ideal for very steep terrains and is considered a true revolution in mechanised harvesting. The Conveyor Transport System guarantees absolutely safe movement to the bin, thanks to the individual e delicate handling.
PIUMA Track reduces picking time, labour costs and guarantees excellent results.

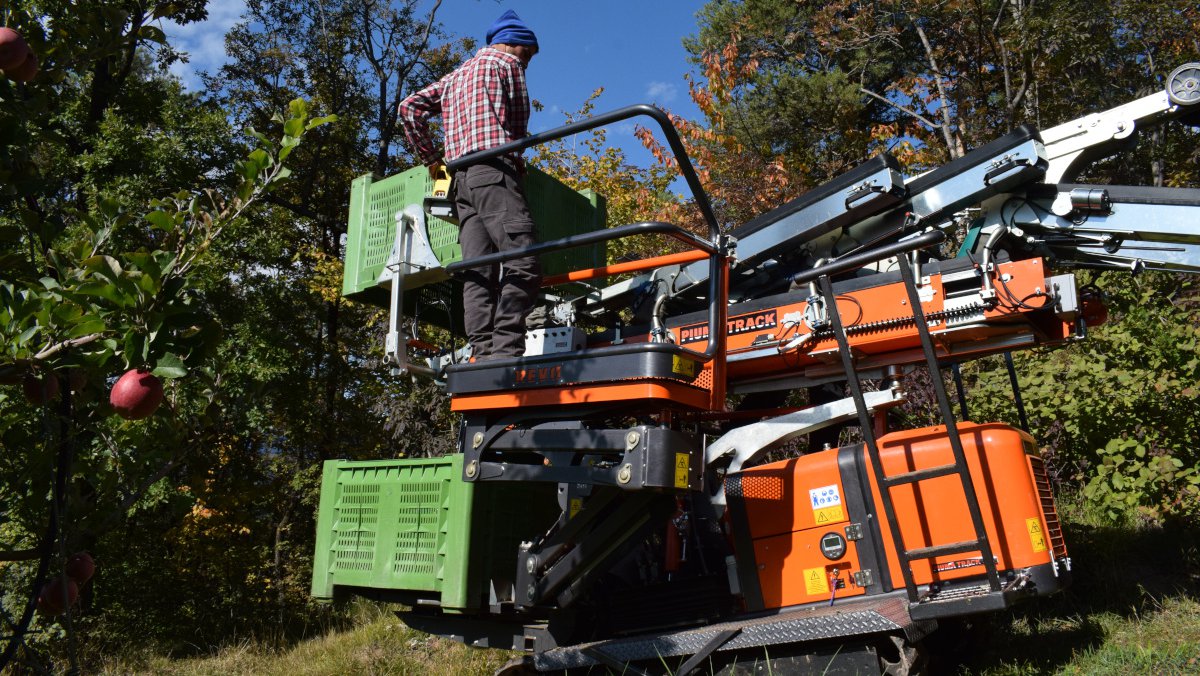

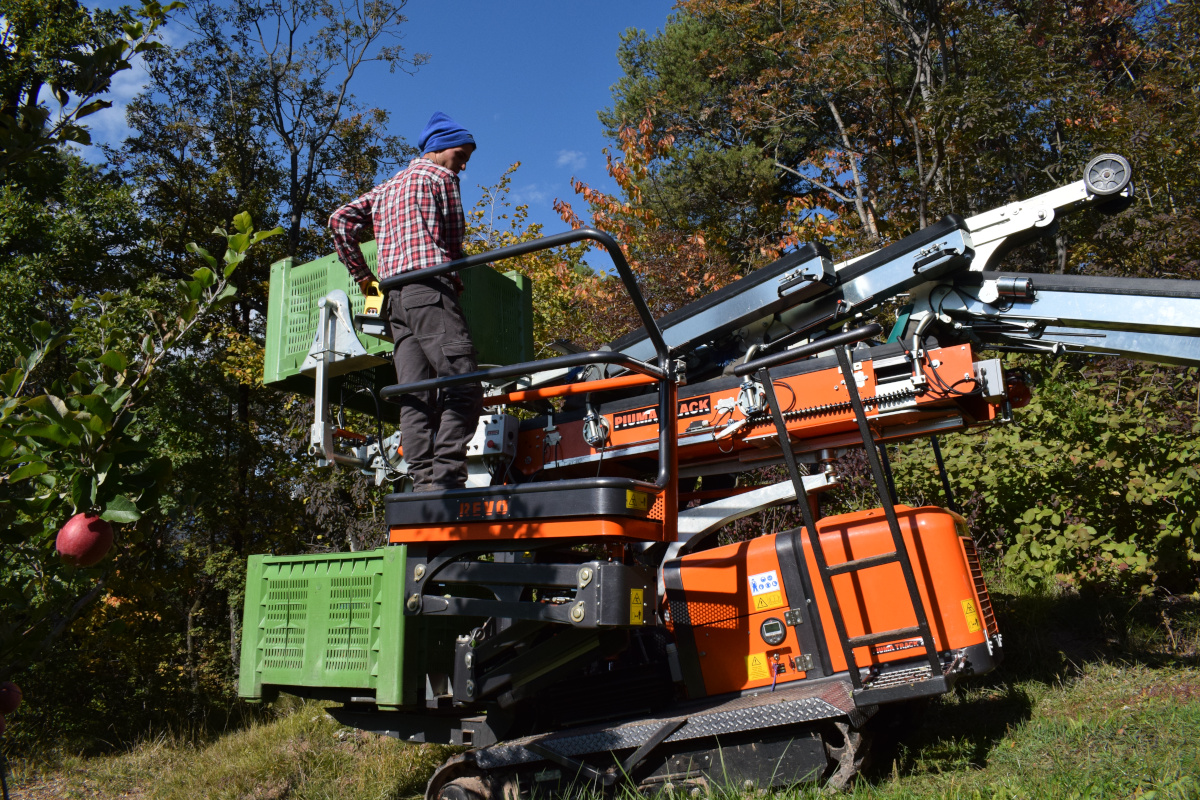

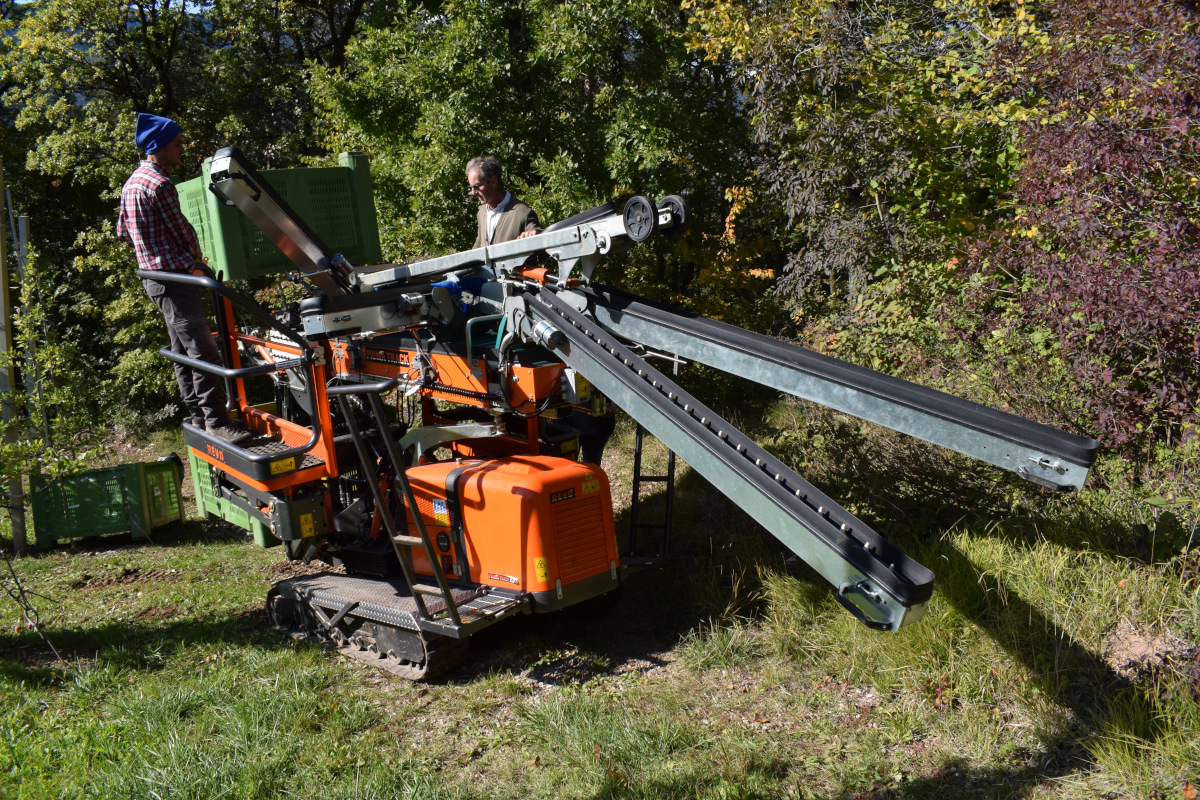

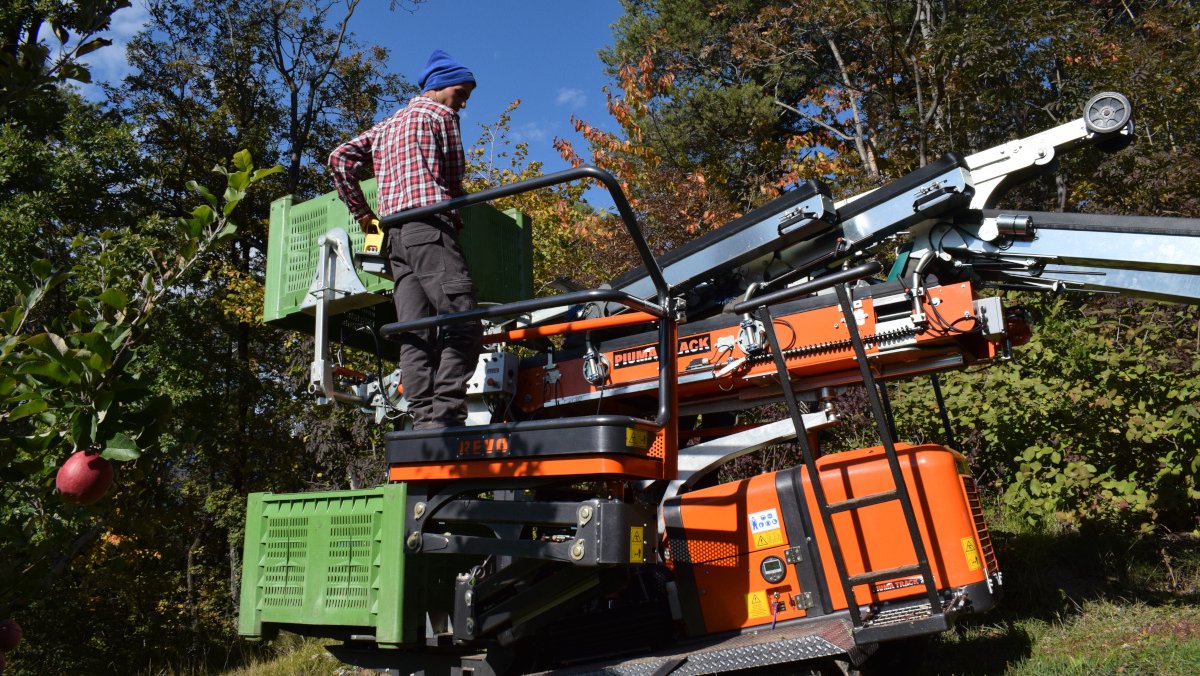

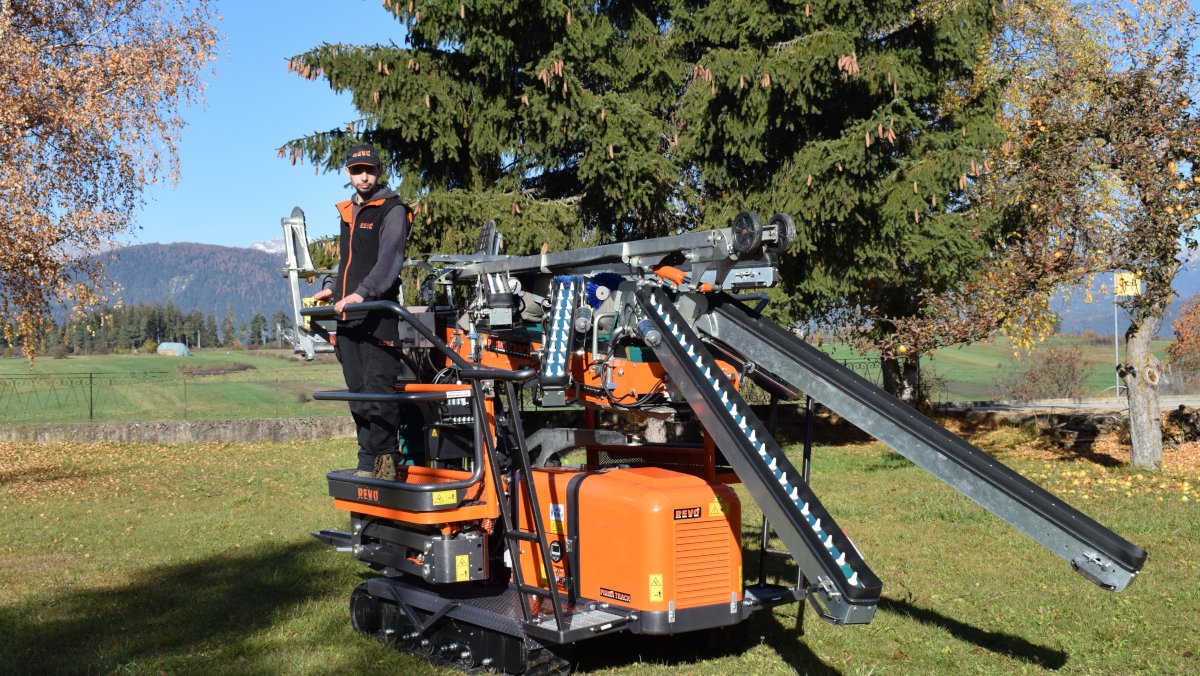

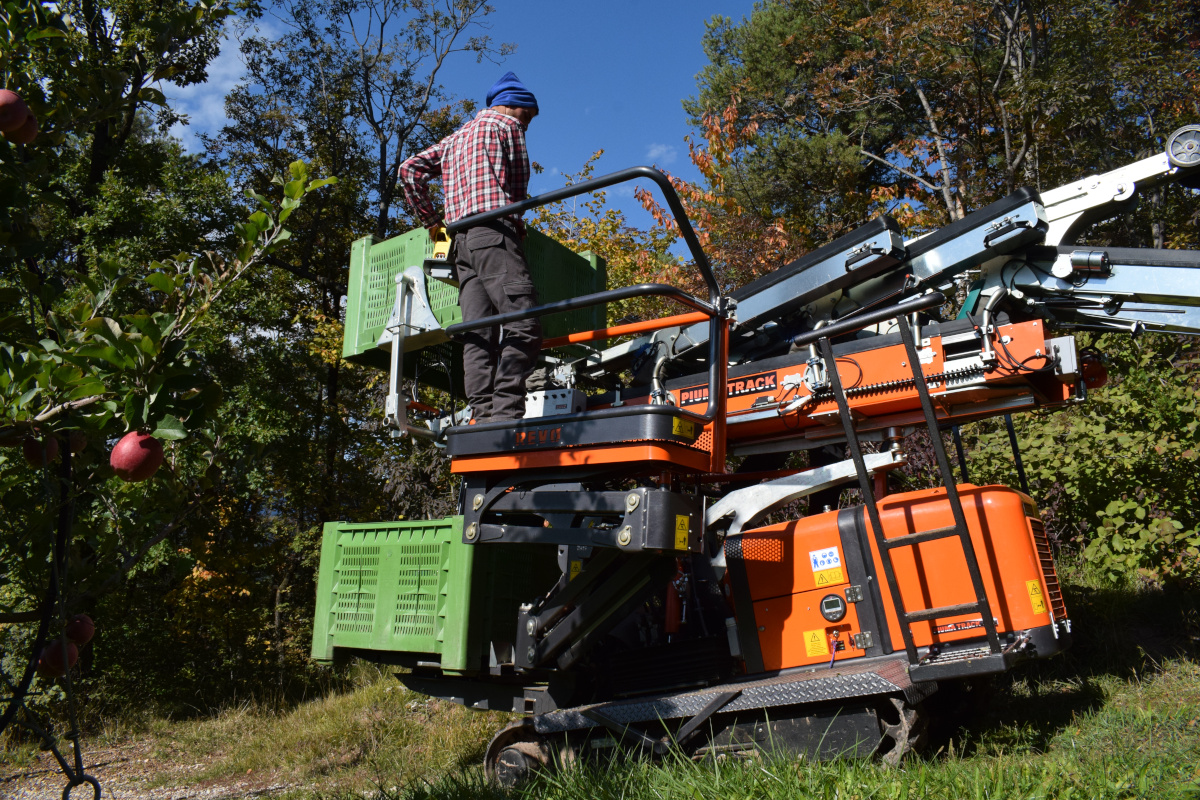

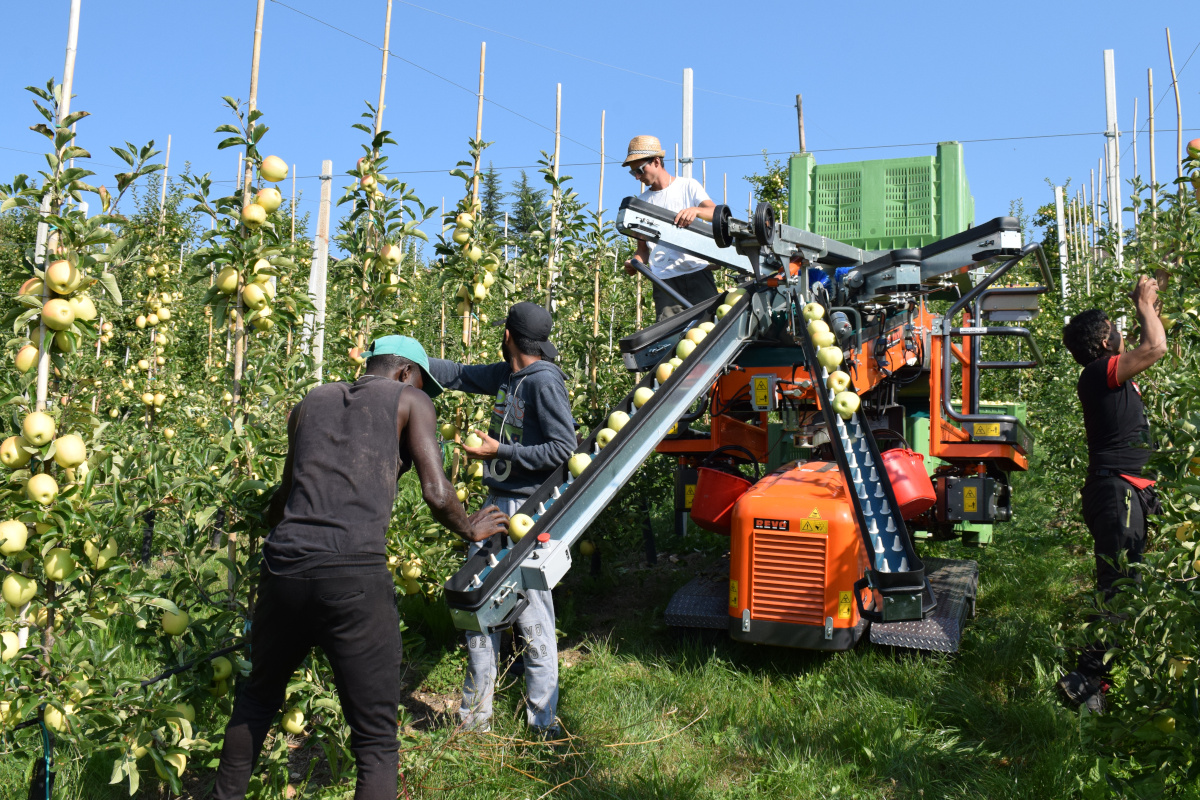

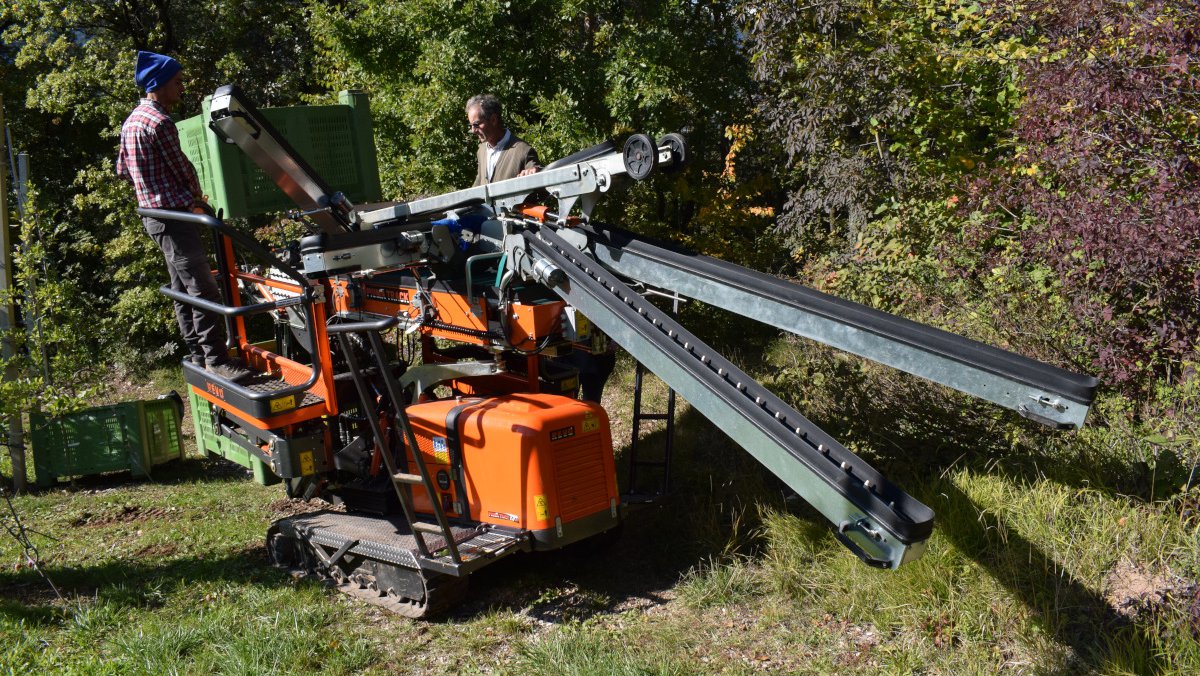

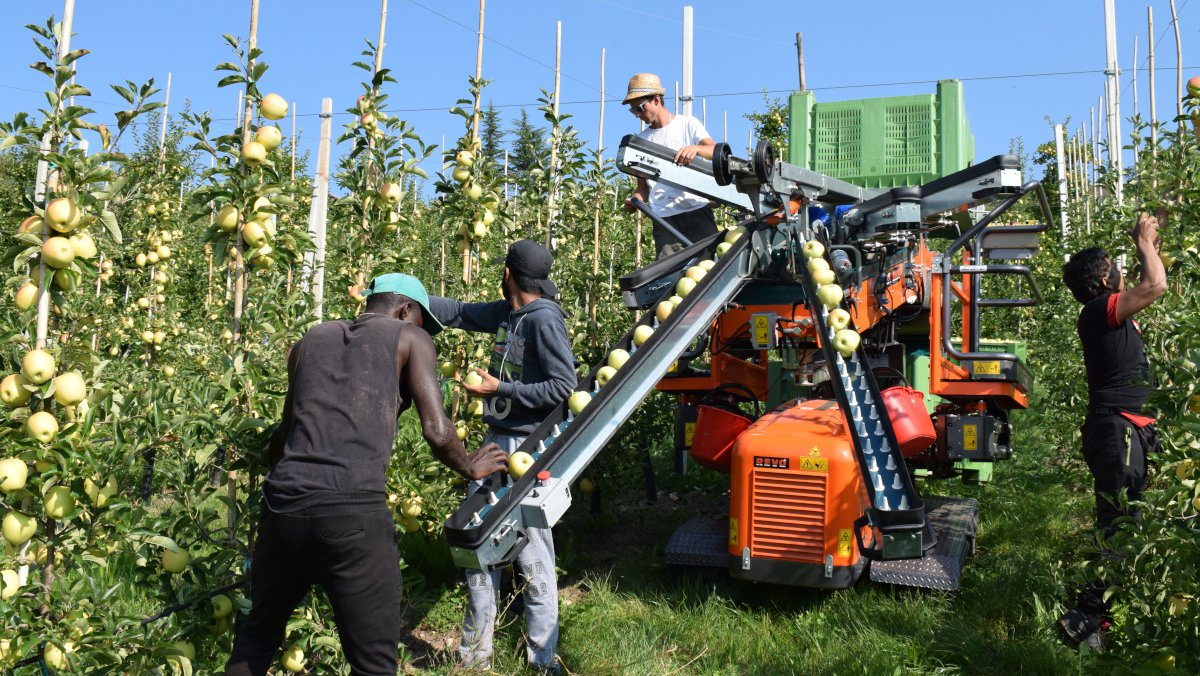

The conveyor belts placed on the extremities of the harvester convey fruit to the main belt, which collects and seamlessly conveys them into the bin.
PIUMA Track moves the fruit faster, more gently and even more efficiently than any competitor in the market today. The fruit is gently placed into the bin with just one simple belt exchange.

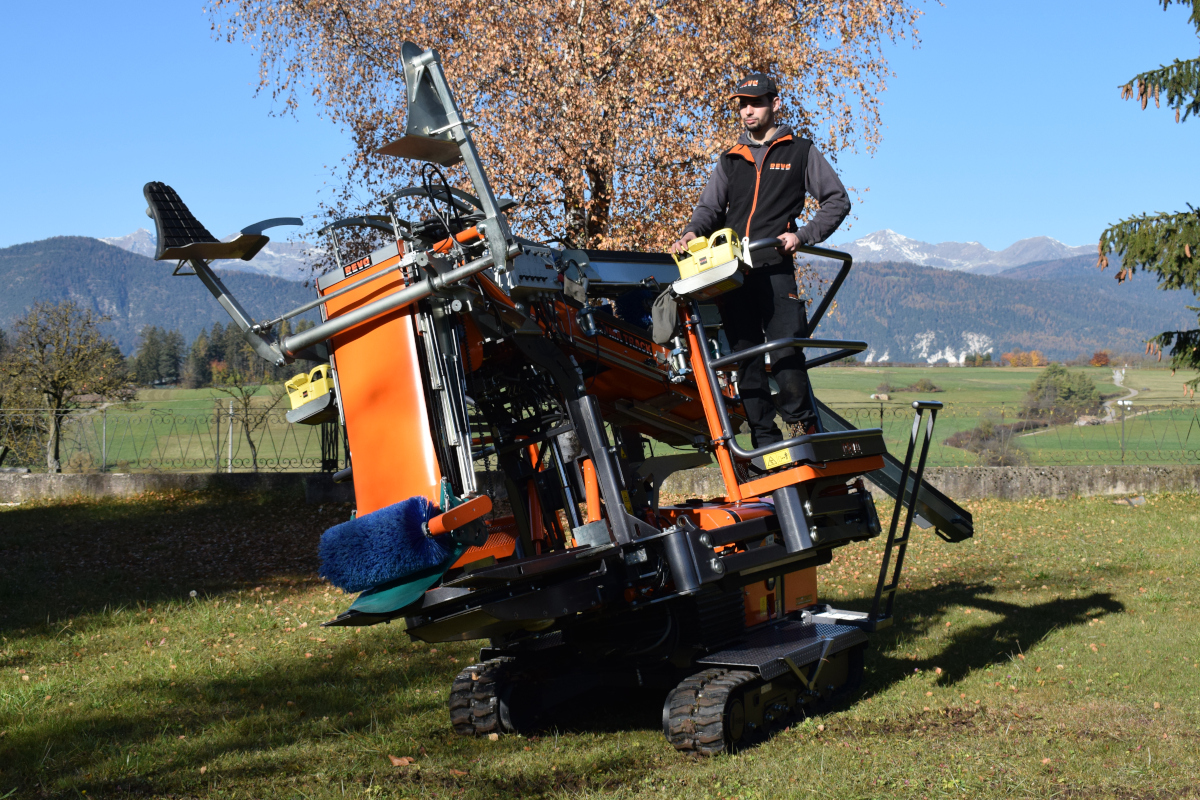

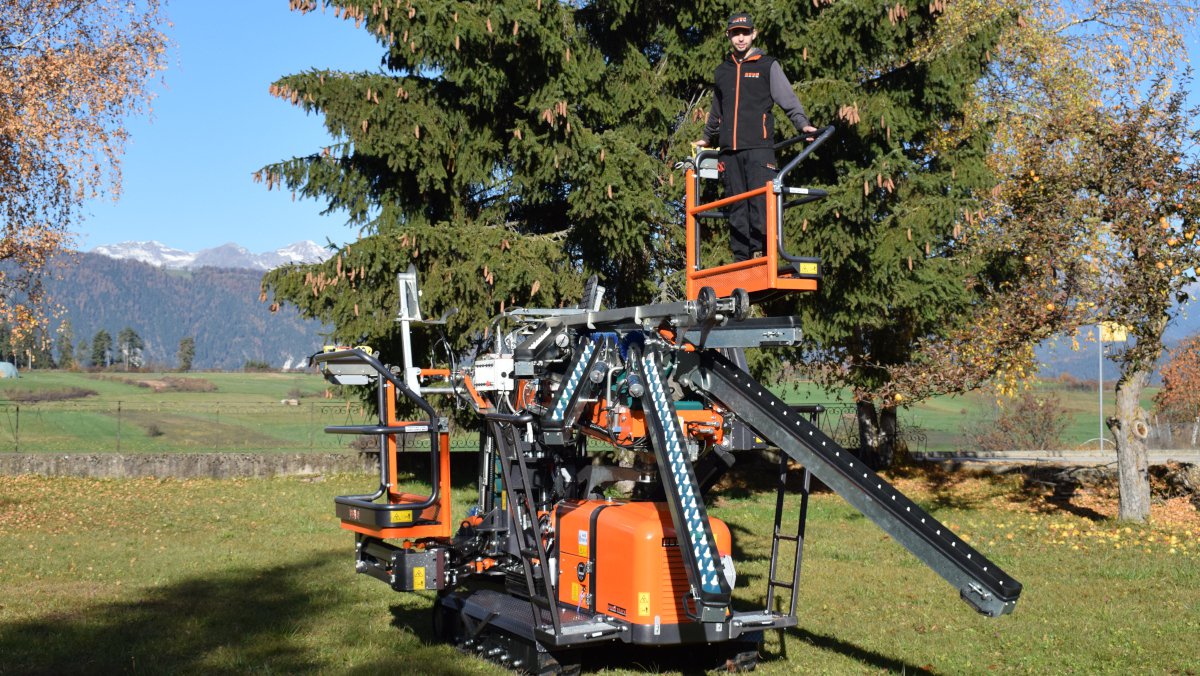

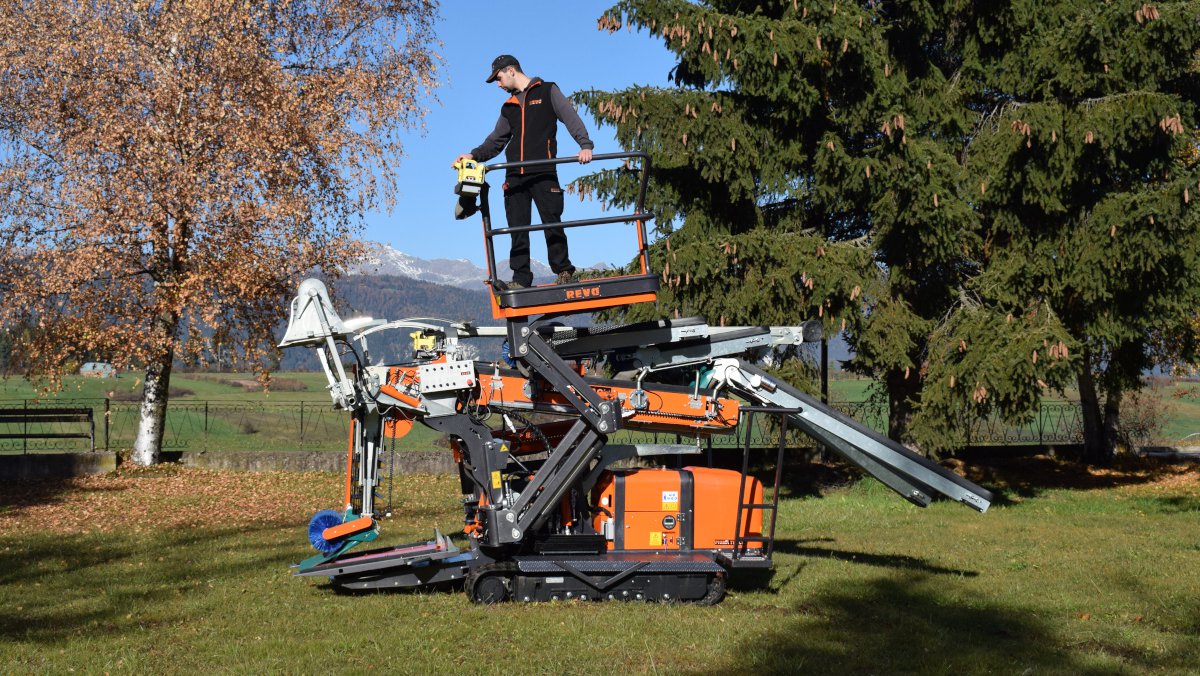

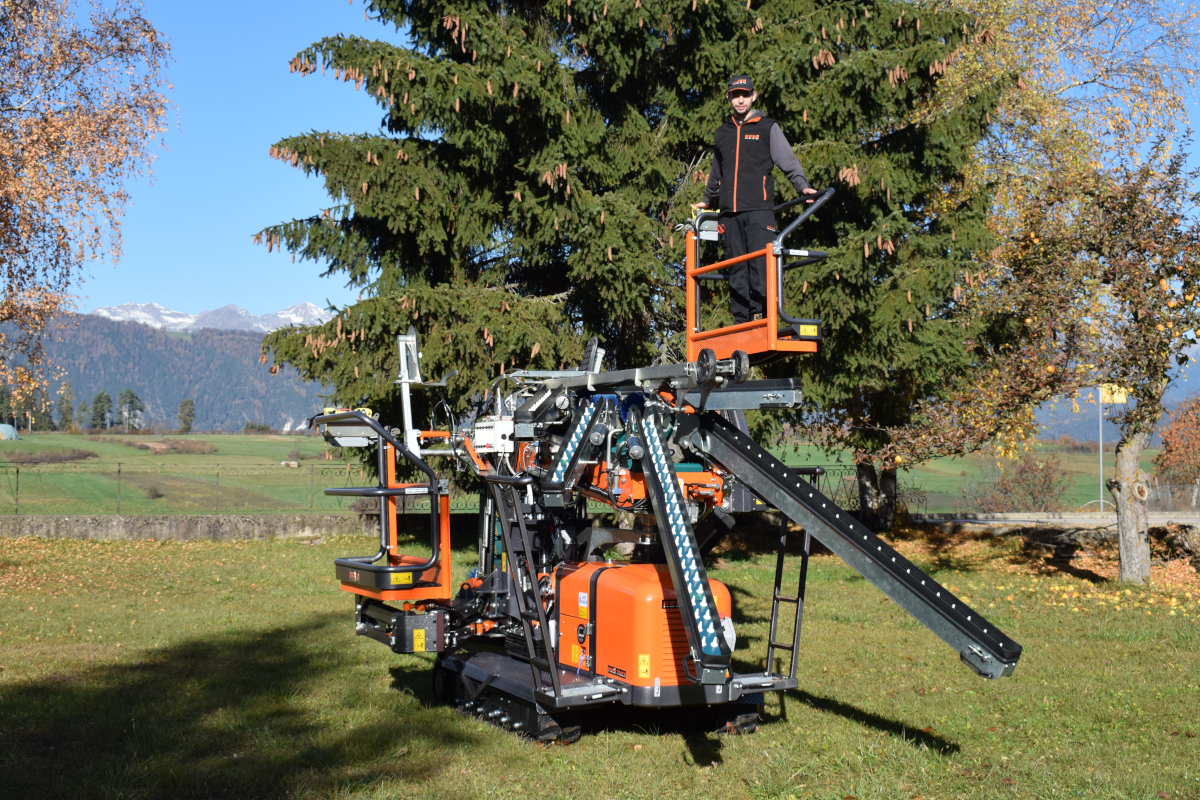

The Automatic Self-levelling System also guarantees the same harvesting quality in hilly terrains. Combined with our unique platform extension, PIUMA Track delivers the perfect harvesting tool.
Technical Specifications
Engine |
Yanmar 18.5 Kw (25 HP) Diesel |
Drive |

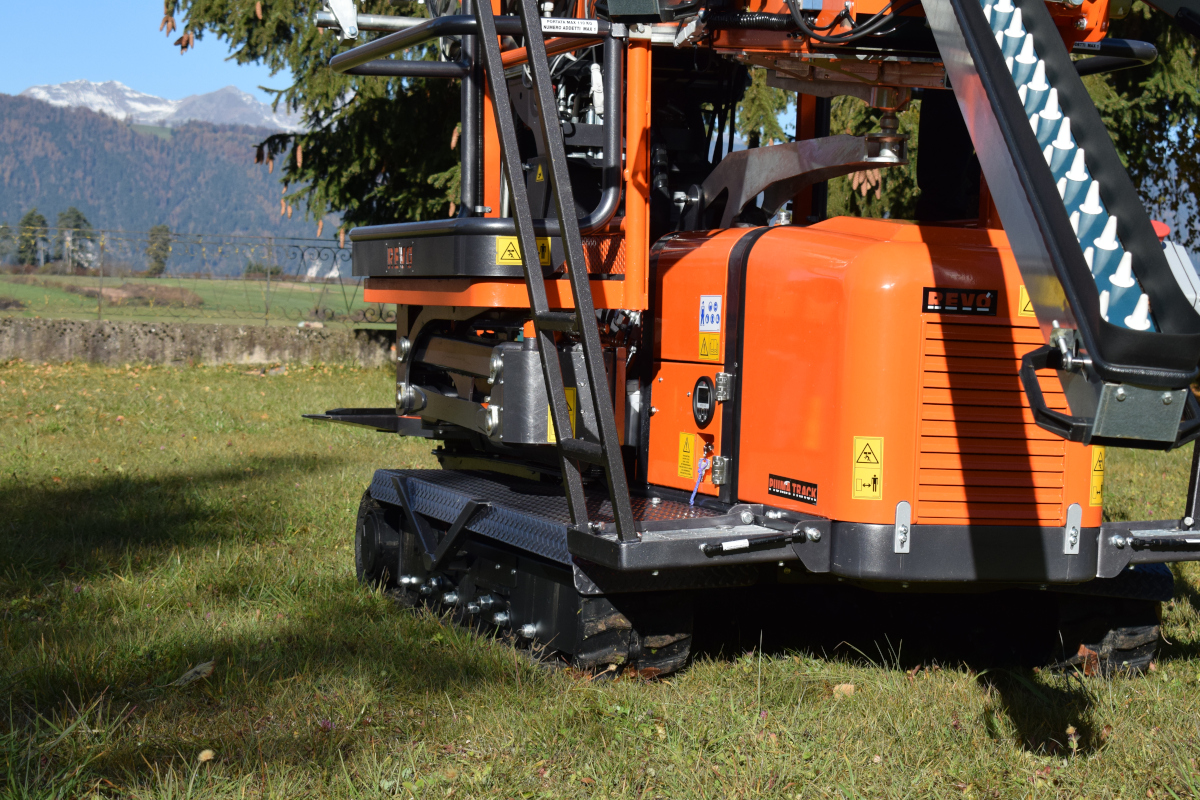

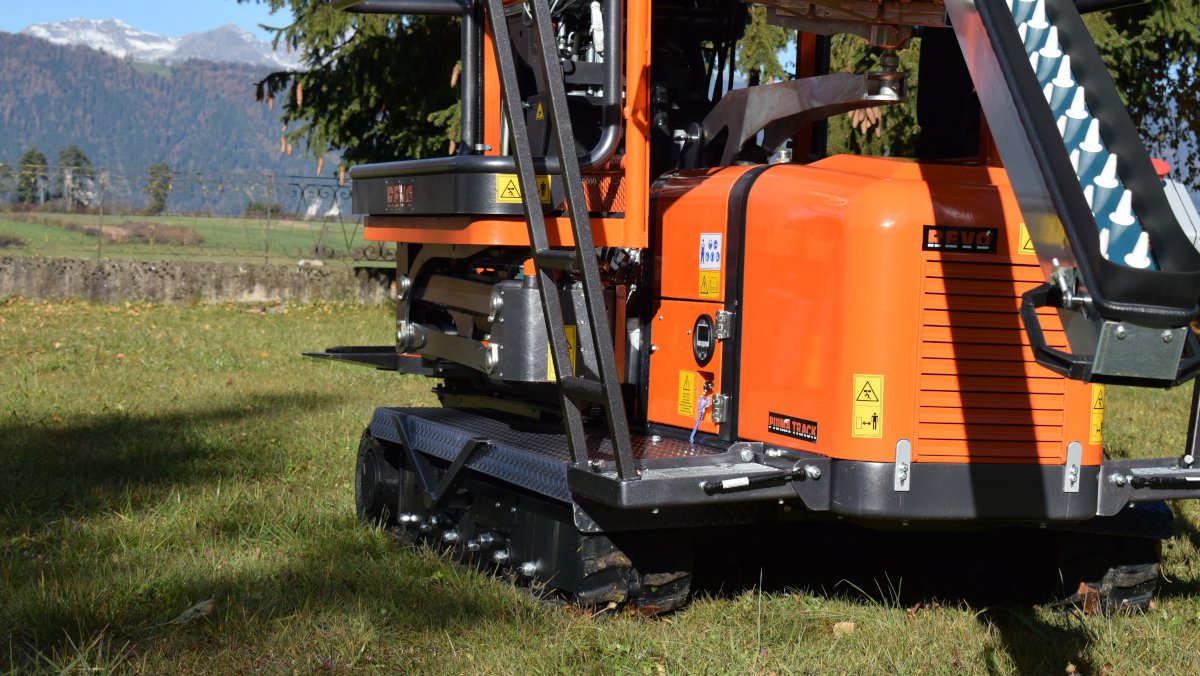

Tracked undercarriage |
Track motors |
Double speed hydraulics |
Speed |
1° 1,7 Km/h - 2° 3,4 Km/h |
Braking system |
Negative brake |
Min width with closed platforms |
1400 mm |
Max width with open platforms |
4000 mm |
Platform extension |
1305 mm each side |
Working length |
3730 mm |
Transport length |
2900 mm |
Lateral platforms max height |
2400 mm |
Ground clearance |
185 mm |
Command system |
Electronic |
Leveling system |
Automatic |
Longitudinal |
17° / 30% |
Lateral |
8,5° / 15% |
Fruit handling |
Single conveyor system |
Weight |
3100 kg |
* Specifications and design subject to change without notice. |
- |
